Keychron Q1 HE Acoustic Upgrade Kit
Keychron Q1 HE Acoustic Upgrade Kit - Keychron Q1 HE ANSI Layout / Poron is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Compatible Keyboards: Q1 HE ANSI Layout.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron Q1 HE Acoustic Upgrade Kit
Want to optimize your keyboard typing experience? Try this upgrade kit! Made of Poron material, the kit includes sound-absorbing foam and bottom frame acoustic foam, all to further modify your keyboard for an improved and enhanced typing experience.
Foam modding the keyboard with this acoustic upgrade kit can further eliminate the hollowness of the keyboard and reduces the resonance on each keystroke.
How to modify your Q1 HE with this kit?
The entire keyboard needs to be taken apart for kit installation. You can refer to the disassembling guide first (Q1 HE disassemble guide), and then watch the following clip for kit installation.

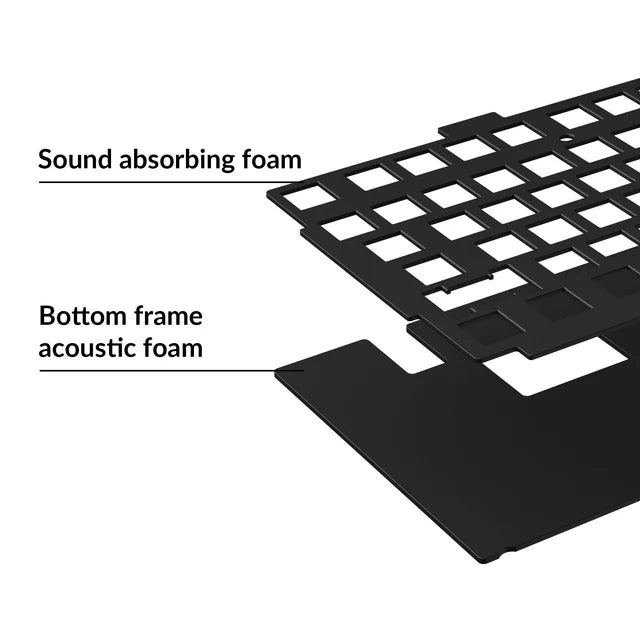

00:00: Place the sound absorbing foam between the plate and the PCB.
00:20: Place the bottom frame acoustic foam on the bottom case.
Specs
| Package Contents | Material | Thickness | Size | Compatible keyboard |
|---|---|---|---|---|
| 1x Sound absorbing foam | Poron | 3.0 mm | 310.38*126.74 mm | Keychron Q1 HE ANSI layout |
| 1x Bottom frame acoustic foam | Poron | 2.0 mm | 311.38*126.77 mm | Keychron Q1 HE ANSI layout |
| 4x Gasket |
